Portable process control when and where you need it arming you with accurate temperature and pressure measurement data.
5 cycles of 20 minutes at 350C (662°F)
…then change coolant packs.
3 cycles of 20 minutes at 350C (662°F)
…then change coolant packs.
2 cycles of 20 minutes at 350C (662°F)
…then change coolant packs.
For extended oven cycles for 3 hours at 350C (662°F)
…then change coolant packs.

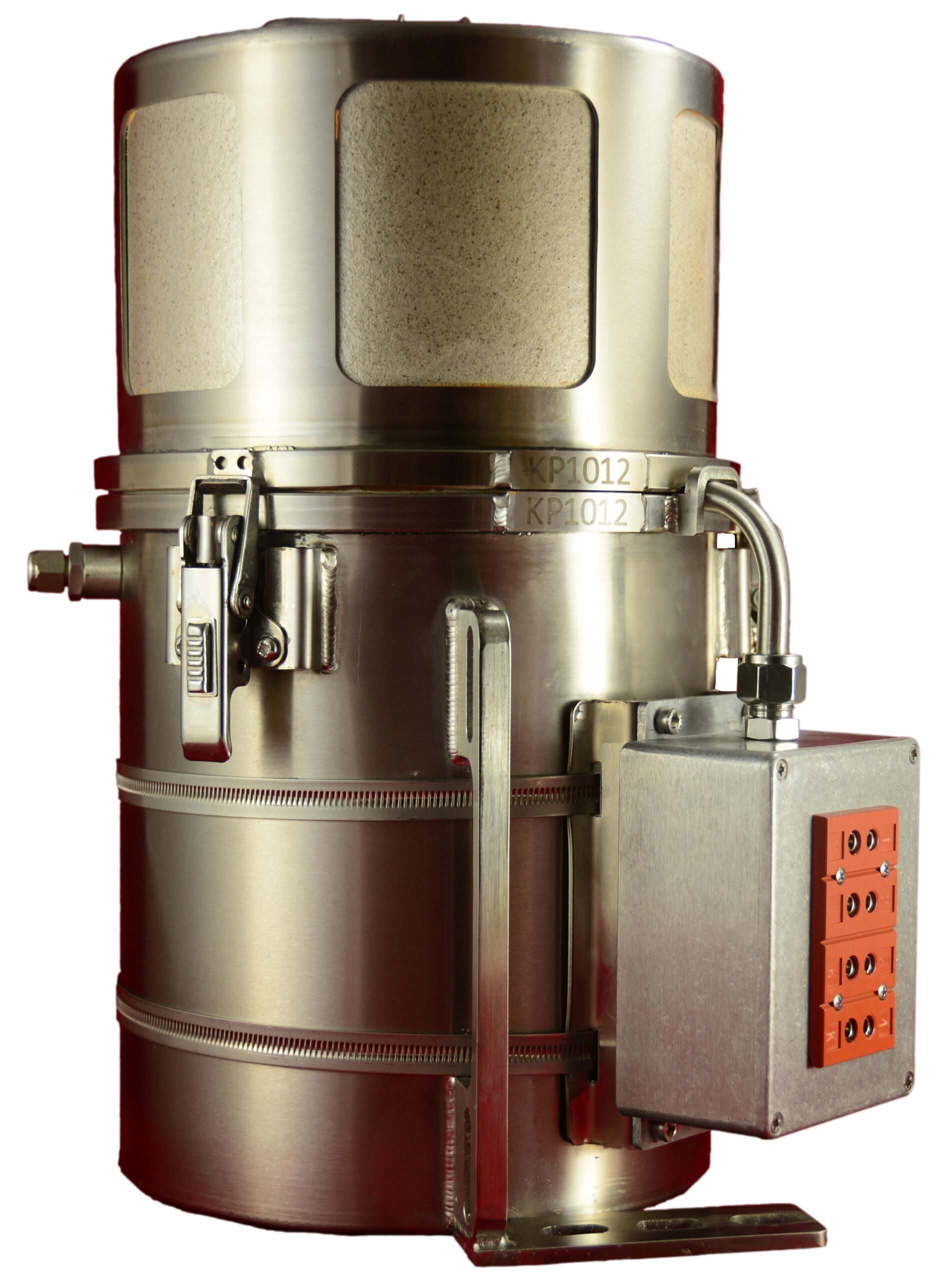

K-PAQ™ is a 4 channel portable device that conveniently attaches to a rotational mould, measuring mould pressure via the vent pipe and mould temperature via type K thermocouples. This is done in real time, allowing the moulder to identify faults immediately and observe the response of the mould to changes in processing variables. The user can mount up to 4 K-PAQ transmitters on a machine, enabling up to 16 temperature channels and 4 pressure channels to be recorded at any one time.
| K-PAQ™ | |
|---|---|
| Mechanical Specification | |
| Pressure Measurement |
Range: 0 – 0.5 x 105 N/m2 (0 – 0.5Bar; 0 – 7P.S.I) Accuracy: +/-0.007 x 105 N/m2 (0.007Bar; 0.1 P.S.I.) Resolution: 0.007 x 105 N/m2 (0.007Bar; 0.1 P.S.I.) No. of Channels: 1 Gauge Pipe Line Connected to Pressurised Mould |
| Temperature Measurement |
Range: 0C (32°F) to +350C (+662°F) Accuracy: +/- 4.0C (7.20°F) Resolution: 0.5C (0.90°F) No. of Channels: 4 Differential Thermocouples Range: Up to 100m in free air; in oven range typical 30m Frequency: UHF Low Power License Exempt (417.900-418.100MHz, 433.720-434.120MHz, 800Mhz) |
| Channels |
Standard: 4 temp channels; 1 pressure channel. Junior: 3 temp channels. Mini: 3 temp channels. Extreme: 3 temp channels. |
| Enclosure Nominal Dimensions |
Standard: 220mm (8.7”) DIA x 365mm (14.4”) HEIGHT Junior: 220mm (8.7”) DIA x 205mm (8.1”) HEIGHT Mini: 305mm (12”) WIDTH x 170mm (6.7”) LENGTH x 145mm (5.7”) HEIGHT Extreme: 250mm (9.8”) WIDTH x 275mm (10.8”) LENGTH x 215mm (8.5”) HEIGHT |
| Enclosure Material |
Stainless Steel |
| Protection Rating |
IP65 (protection against dust ingress and water jets) |
